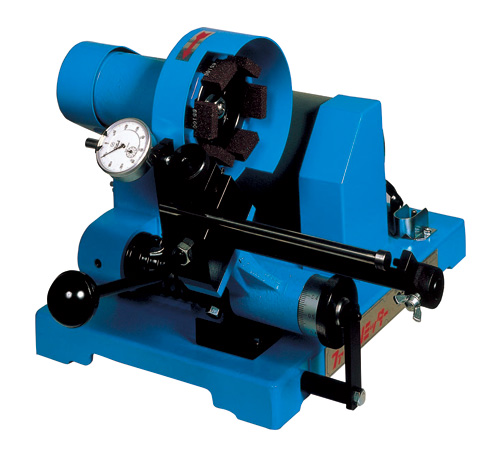

LM-P / LM-O
Face grinder for adjusting the length of the extruding pins of die.
Characteristics
- Cutting feeder scale enables cutting during measurements via a dial gauge.
- Special-purpose segment grinding stones are free from clogging or burning, even in the case of the dry type.
Standard Specification
LM-P | LM-O | |
---|---|---|
Maximum pin diameter | ●■solid bar 2-20mm | ●■solid bar 10-30mm |
Maximum pin length | 40-250mm | 40-250mm |
Spindle motor | AC100 V・single phase・2P・200W | AC100 V・single phase・4P・400W |
Spindle revolutions
per minute |
2890/3460rpm・50Hz/60Hz | 2580/3090rpm・50Hz/60Hz |
Grinding graduations | 1/100mm | 1/100mm |
No. of settings | 1 pin | 1 pin |
Dimensions (W x L x H) | 450mm x 610mm x 300mm | 470mm x 610mm x 320mm |
Machine weight | 30kg | 42kg |
Accessories | 1 set of dial gauges, 1 set of segment grinding stones (medium mesh), pin face wrench, and box wrench |
* Please consult the voltage change.
Segment Grinding Stone
Type | Finished Surface | Characteristics |
---|---|---|
Medium mesh | Medium |
●Hard and soft ferrous alloys ●Suitable for the precision cutting of cast iron, stainless steel etc. ●For use with difficult-to-cut materials such as tool steel, die steel, and hardened alloys |
Fine mesh | Fine |
Segment Grinding Stone
- LM-P
- Segment Grinding
Stone for LM-P
6-piece set
Medium mesh | B-6-6 |
Fine mesh | B-12-6 |
- LM-O
- Segment Grinding
Stone for LM-O
8-piece set
Medium mesh | B-6-8 |
Fine mesh | B-12-8 |
